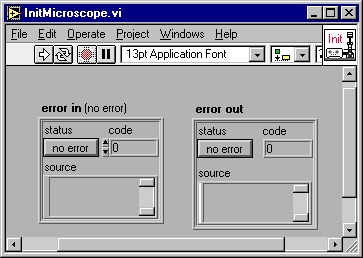

| Initialize |  |
InitMicroscope.vi
Inits the software and the hardware. |

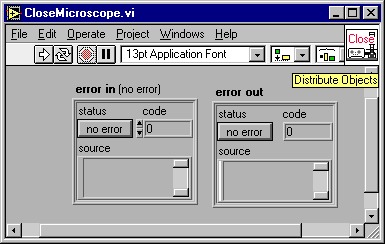

| Close |  |
CloseMicroscope.vi
Ends a LSM-Session |
|
|
|
|
| Laser shutter control |  |
LaserShutter.vi
Does open/close the laser shutter |

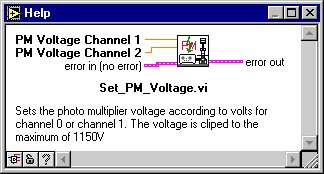

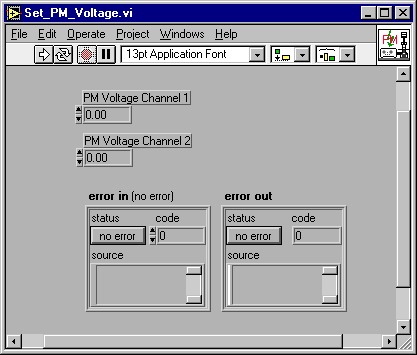

| Photomultiplier voltage |  |
Set_PM_Voltage.vi
Sets the voltage of both PMs. |

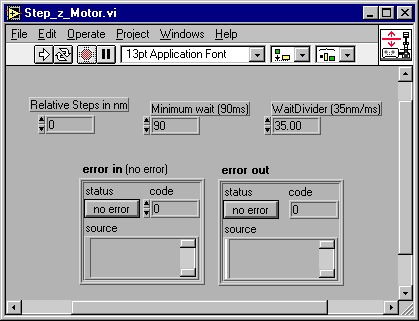

| Move z stage |  |

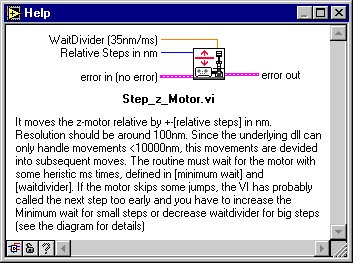

Step_z_Motor.vi
Relatively moves the z stage |
| Next Z Move |  |

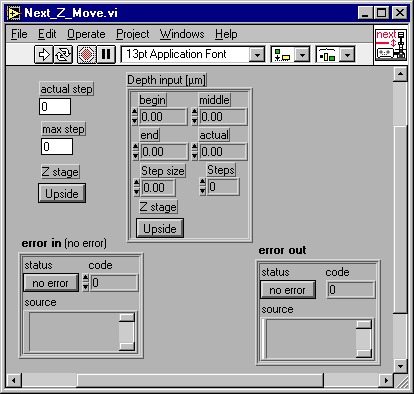

Next_Z_Move.vi
Performs a Z-Scan (called from a loop) |
|
|
|
|

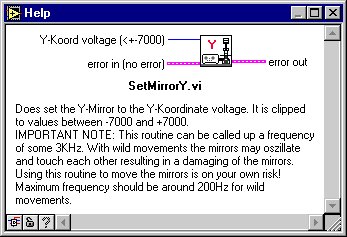

| Basic mirror control X Y |   |

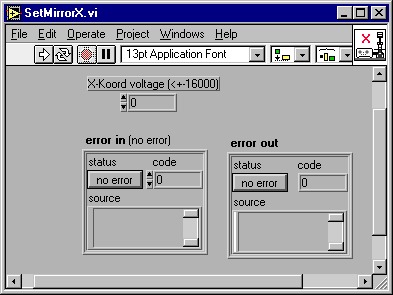

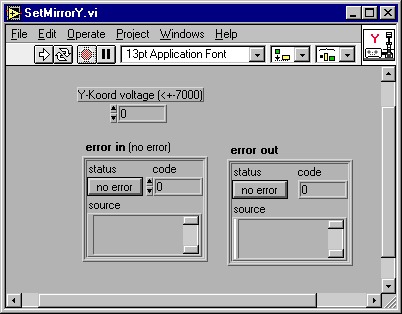

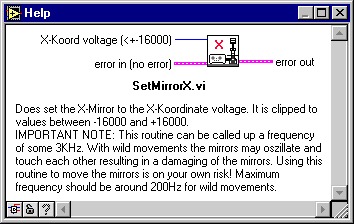

SetMirrorX.vi and SetMirrorY.vi
Set the mirror to absolute position |

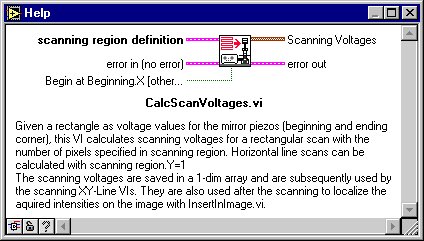

| Prepare a scan |  |

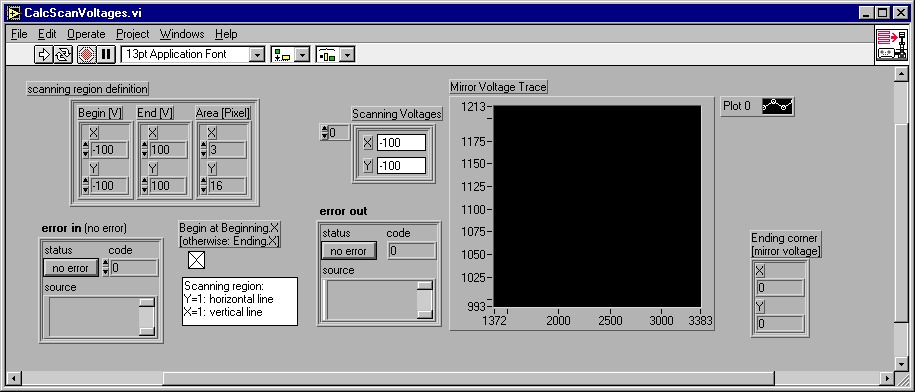

CalcScanVoltage.vi
Calculates koordinates for bidirectional scan |

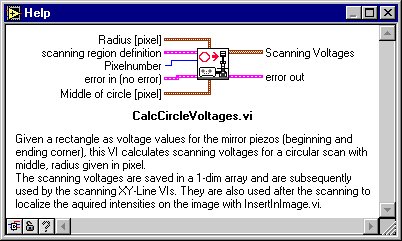

| Prepare Circle / Line Scan |   |

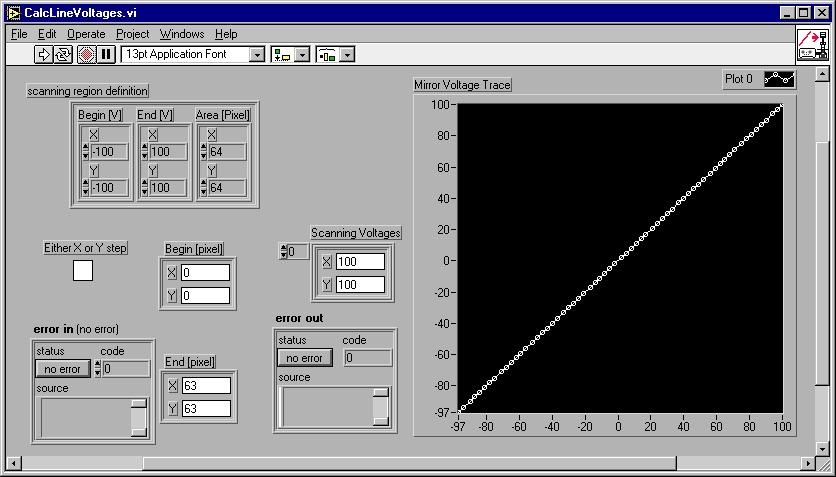

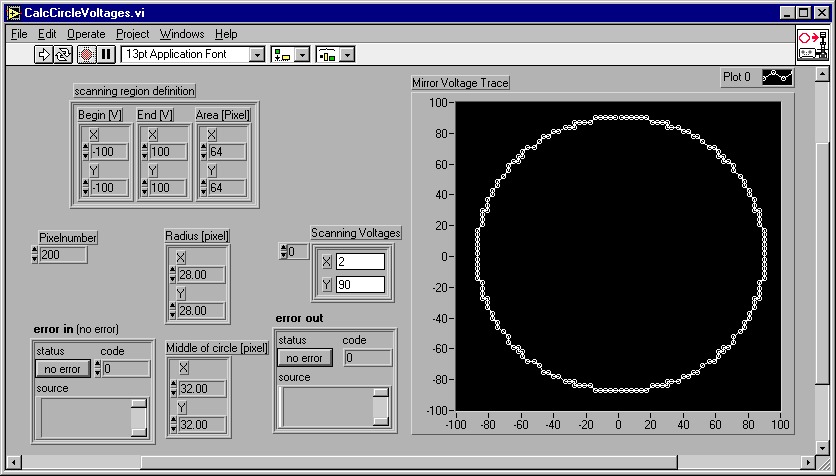

CalcCircleVoltages.vi and

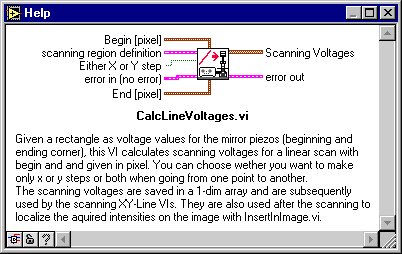

CalcLineVoltages.vi
Calculates koordinates for a circle or a line scan |

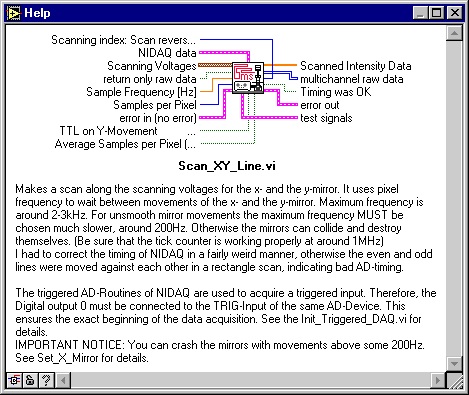

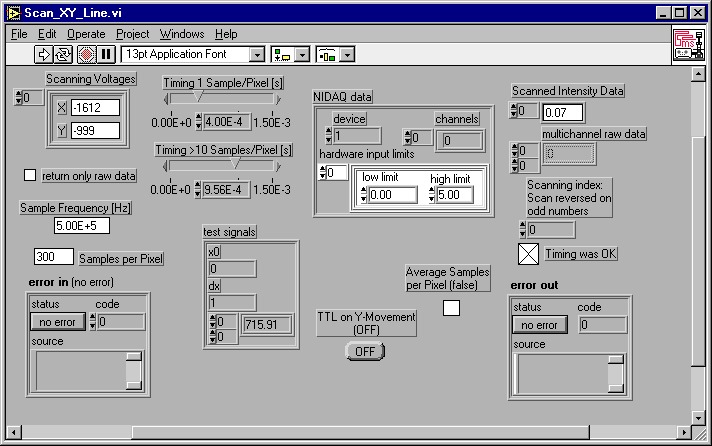

| Scan |  |
Scan_XY_Line.vi
Scans along an arbitrary line |

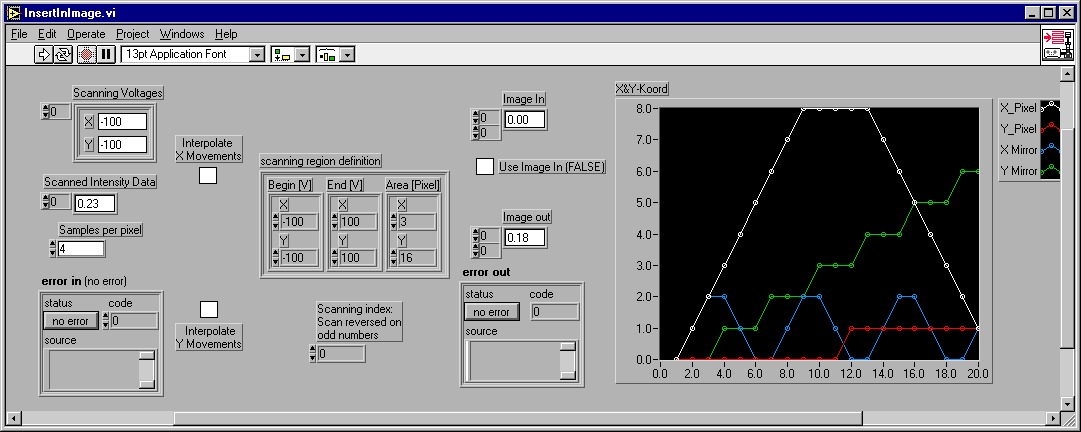

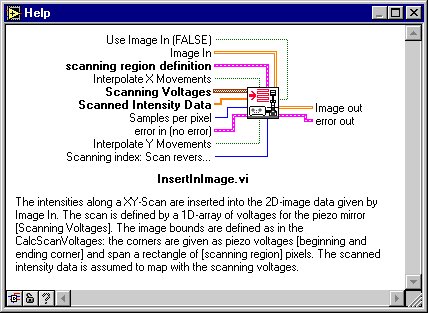

| Extract image |  |
InsertInImage.vi
Sets the data along an arbitrary line into an image |

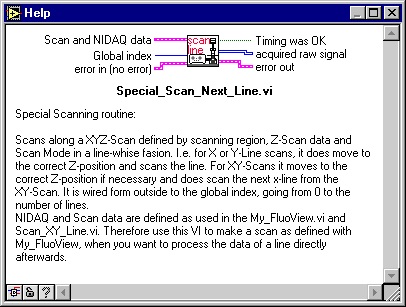

| Special Scan Next Line |
 |
Special_Scan_Next_Line.vi
Scans one line from a XYZ-Cube (called from a loop) |
|
|
|
|

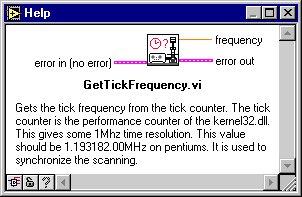

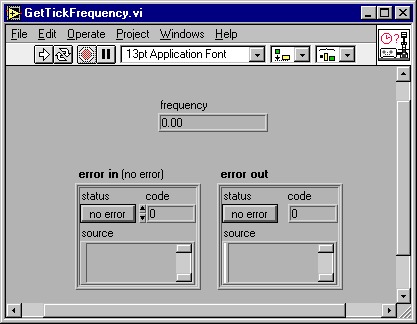

| Get tick frequency |  |
GetTickFrequency.vi
Gets the frequency of the ticks (some MHz) |
| Get tick |  |
GetTick.vi
Gets the next tick number |

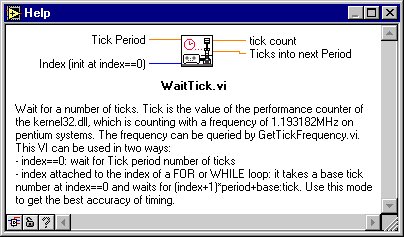

| Wait tick |  |

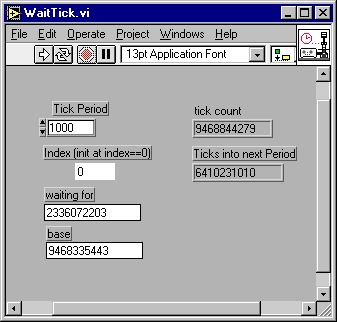

WaitTick.vi
Waits for ticks for use from a loop |
